Bell Housings for Electric Motors
Bell Housings for Electric Motors

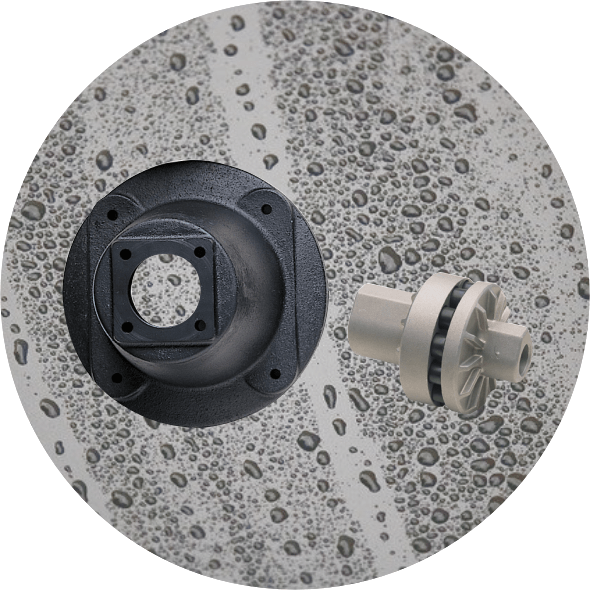

Pump Flanges for B14 Electric Motors.
For pumps with 24mm shafts, these flanges are for connection to B14 face electric motors using a flexible drive coupling.| Model | Motor Frame | Motor Shaft | Pump Shaft | hp | kW | Pump Series |
|---|---|---|---|---|---|---|
| P04 | 90 B14 | 24mm | 24mm | 1.5 - 3.0 | 1.1 - 2.2 | PNC, PNE, PSC |
| P05 | 100/112 B14 | 28mm | 24mm | 3.0 - 5.5 | 2.2 - 4.0 | PNC, PNE, PSC |
| PK08 | 100/112 B14 | 28mm | 24mm | 3.0 - 5.5 | 2.2 - 4.0 | PKC, PKWT |
| MG04 | 100/112 B14 | 28mm | 24mm | 3.0 - 7.5 | 2.2 - 5.5 | B, BK, MS, MWT, C, CS, CK, CWT, CH |
| MG10 | B14 132 B14 | 38mm | 24mm | 7.5 - 15 | 5.5 - 11 | B, BK, MS, MWT, C, CS, CK, CWT, CH |

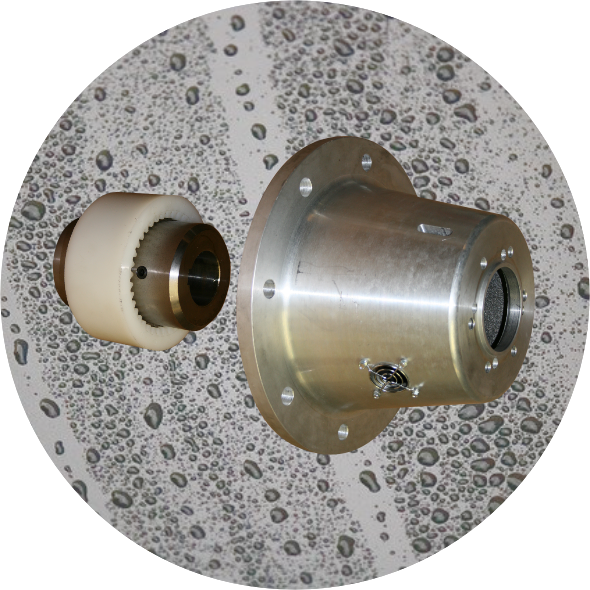

Pump Flanges for B5 Electric Motors.
For pumps with 35mm shafts, these flanges are for connection to B5 face electric motors using a flexible drive coupling.| Model | Motor Frame | Motor Shaft | Pump Shaft | hp | kW | Pump Series |
|---|---|---|---|---|---|---|
| NX02 | 160 B5 | 42mm | 35mm | 15 - 25 | 11 - 18 | NX |
| NX01 | 180 B5 | 48mm | 35mm | 20 - 30 | 15 - 22 | NX |
| VX01 | 180 B5 | 48mm | 35mm | 20 - 40 | 15 - 22 | Penta, VX, VY |
| VX02 | 200 B5 | 55mm | 35mm | 25 - 50 | 18.5 - 37 | Penta, VX, VH, VY |
