Aluminium Head Spline shaft Pumps
Aluminium Head Udor Pumps with Spline Shaft
Udor Pumps Gamma 62 TS 1C and Gamma 62 TS GR.
Gamma Series   62lt   600 rpm   up to 50 bar   Spline Shaft
Gamma 62 pumps have both a  spline and 35mm shaft for PTO connection to tractors, electric motors via belts and reduction gearboxes for engines.
Model lt gpm bar psi hp kw rpm inlets outlets kg
Gamma 62 TS 1C 67 14.7 50 725 8.6 6.4 600 36mm 3/4 23
Gamma 62 TS GR 67 14.7 50 725 8.6 6.4 600 36mm 3/4 23

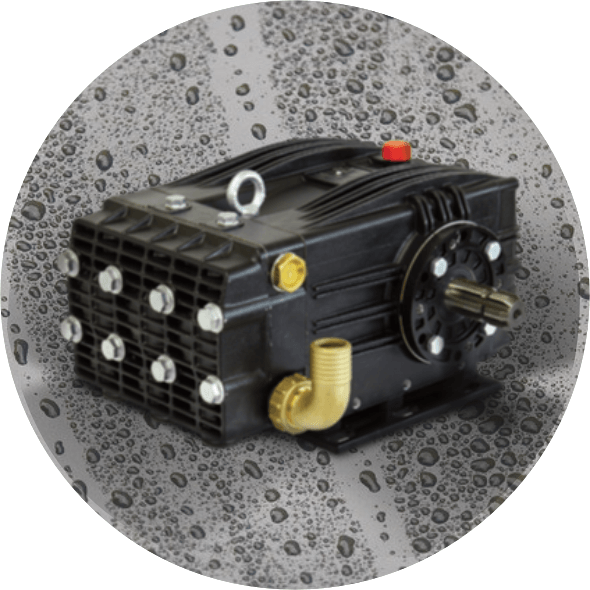

Udor Pump Gamma 85 TS 1C, Gamma 105 TS 1C and Gamma 125 TS 1C.
Gamma Series  84 to 133lt  600 rpm  up to 60bar Spline Shaft
Gamma 84 to 125 pumps have both a  spline and 35mm shaft for PTO connection to tractors, electric motors via belts and reduction gearboxes for engines.
Model lt gpm bar psi hp kw rpm inlets outlets kg
Gamma 85 TS 1C 84 18.5 60 870 12.9 9.6 600 36mm 3/4 38
Gamma 105 TS 1C 106 23.3 60 870 16.4 12.2 600 36mm 3/4 38
Gamma 125 TS 1C 133 29.3 60 870 20.5 15.3 600 40mm 3/4 38

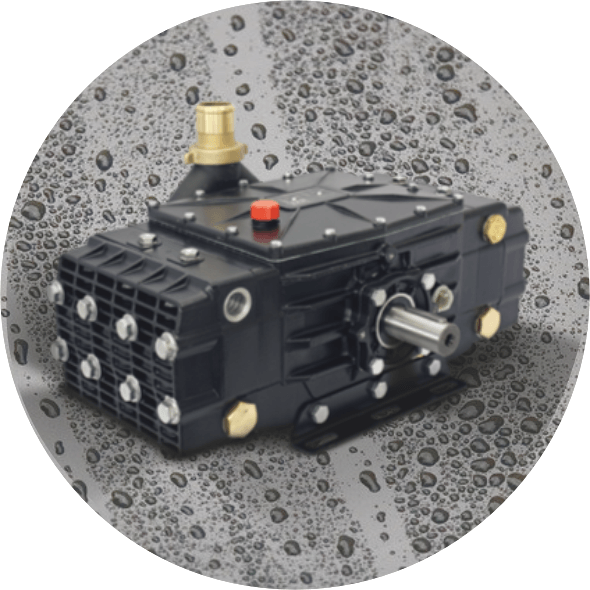

Udor Pumps Gamma 162 TS 1C, Gamma 202 TS 1C and Gamma 242 TS 1C.
Gamma Series  164 to 240lt  550-600 rpm 60bar Spline Shaft
Gamma 162 to 242 pumps have both a  spline and 35mm shaft for PTO connection to tractors, electric motors via belts.
Model lt gpm bar psi hp kw rpm inlets outlets kg
Gamma 162 TS 1C 164 36.1 60 870 25.2 18.8 600 50mm 3/4 52
Gamma 202 TS 1C 208 45.8 60 870 32.0 23.9 600 50mm 3/4 52
Gamma 242 TS 1C 240 52.9 60 870 27.5 27.5 550 50mm 3/4 52
