Brass Head Spline shaft Pumps
Brass Head Udor Pumps with Spline Shaft
Gamma IL Series 84 to 106lt 600 rpm 100bar Spline Shaft
Gamma IL pumps have both a spline and 35mm shaft for PTO connection to tractors, electric motors via belts.| Model | lt | gpm | bar | psi | hp | kw | rpm | inlets | outlets | kg |
|---|---|---|---|---|---|---|---|---|---|---|
| Gamma IL 83 TS 1C | 84 | 18.5 | 100 | 1450 | 21.5 | 16.0 | 600 | 36mm | 3/4 | 54 |
| Gamma IL 103 TS 1C | 106 | 23.3 | 100 | 1450 | 27.3 | 20.4 | 600 | 36mm | 3/4 | 54 |

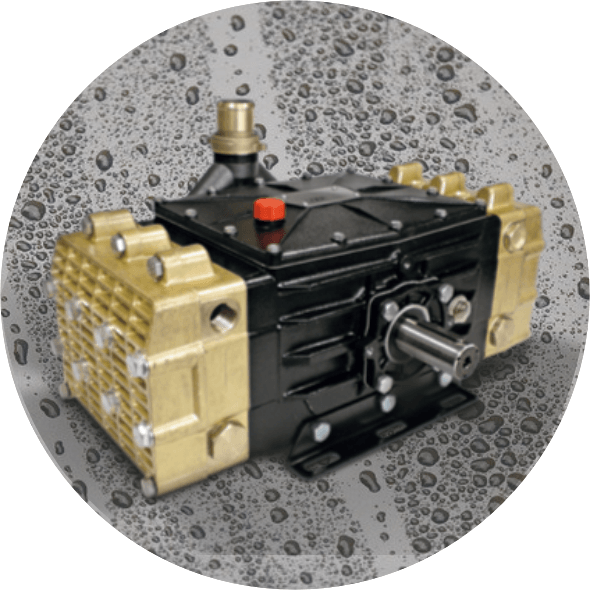

Gamma Series 163 to 202lt 600 rpm 80 bar Spline Shaft
Gamma IL pumps have both a spline and 35mm shaft for PTO connection to tractors, electric motors via belts.| Model | lt | gpm | bar | psi | hp | kw | rpm | inlets | outlets | kg |
|---|---|---|---|---|---|---|---|---|---|---|
| Gamma IL160 TS 1C | 163 | 35.9 | 80 | 1160 | 33.4 | 24.9 | 600 | 50mm | 3/4 | 69 |
| Gamma IL200 TS 1C | 202 | 44.5 | 80 | 1160 | 42.2 | 31.5 | 600 | 50mm | 3/4 | 69 |

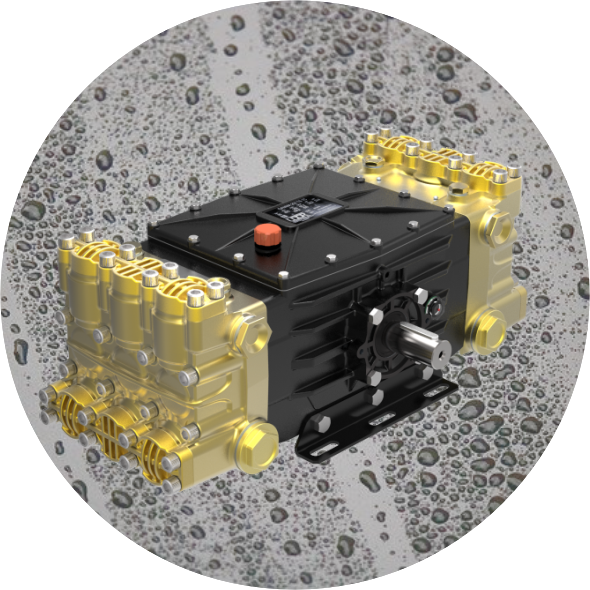

VX6 Series 260 to 411lt 800 rpm up to 60 bar Spline Shaft
VX6 Pumps have both a spline and 35mm shaft for PTO connection to tractors, electric motors via belts.| Model | lt | gpm | bar | psi | hp | kw | rpm | inlets | outlets | kg |
|---|---|---|---|---|---|---|---|---|---|---|
| VX6-A260-60 TS 1C | 260 | 57.3 | 60 | 870 | 42.0 | 31.3 | 800 | 2 x 1"1/2 | 1" | 90 |
| VX6-A330-50 TS 1C | 329 | 72.5 | 50 | 725 | 44.3 | 33.1 | 800 | 2 x 1"1/2 | 1" | 90 |
| VX6-A410-40 TS 1C | 411 | 90.5 | 40 | 580 | 44.3 | 33.1 | 800 | 2 x 1"1/2 | 1" | 90 |
