Hot Water Pumps
Udor Pumps for Hot Water

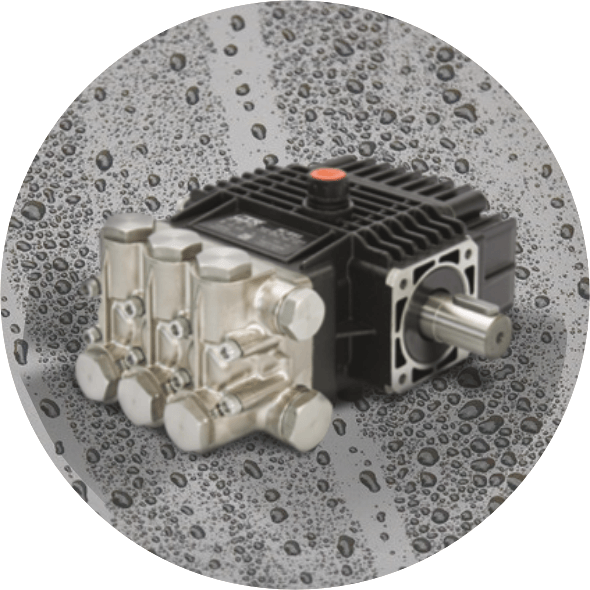

PKW Series 11 - 13lt 1450 rpm up to 150bar 85 Degrees C
PKWTC Pumps are suitable for pumping hot water up to 85 degrees C and have a 24mm shaft for direct drive to 4 pole hollow shaft electric motors or to reduction gearboxes for engines.| Model | lt | gpm | bar | psi | hp | kw | rpm | inlets | outlets | kg |
|---|---|---|---|---|---|---|---|---|---|---|
| PKWTC11-15S | 11 | 2.4 | 150 | 2175 | 4.2 | 3.1 | 1450 | 1/2 | 3/8 | 6.2 |
| PKWTC13-15S | 13 | 2.9 | 150 | 2175 | 5.0 | 3.7 | 1450 | 1/2 | 3/8 | 6.2 |
BCW Series 10 - 21lt 1000 - 1450 rpm up to 200bar 70 Deg C
BCWB and BCWC Pumps are suitable for pumping hot water up to 70 degrees C and have a 24mm shaft for direct drive to hollow shaft electric motors or to reduction gearboxes for engines.| Model | lt | gpm | bar | psi | hp | kw | rpm | inlets | outlets | kg |
|---|---|---|---|---|---|---|---|---|---|---|
| BCWB 10-20 | 10.9 | 2.4 | 200 | 2900 | 5.6 | 4.2 | 1000 | 1/2 | 3/8 | 9.1 |
| BCWB 13-20 | 13.5 | 3.0 | 200 | 2900 | 6.9 | 5.2 | 1000 | 1/2 | 3/8 | 9.1 |
| BCWB 15-20 | 14.3 | 3.15 | 200 | 2900 | 7.3 | 5.5 | 1000 | 1/2 | 3/8 | 9.1 |
| BCWC 13-20 | 13.3 | 3.0 | 200 | 2900 | 6.8 | 5.1 | 1450 | 1/2 | 3/8 | 9.1 |
| BCWC 15-20 | 15.7 | 3.5 | 200 | 2900 | 8.0 | 6.0 | 1450 | 1/2 | 3/8 | 9.1 |
| BCWC 18-20 | 19.5 | 4.3 | 200 | 2900 | 10.0 | 7.5 | 1450 | 1/2 | 3/8 | 9.1 |
| BCWC 21-20 | 20.7 | 4.5 | 200 | 2900 | 10.6 | 7.9 | 1450 | 1/2 | 3/8 | 9.1 |

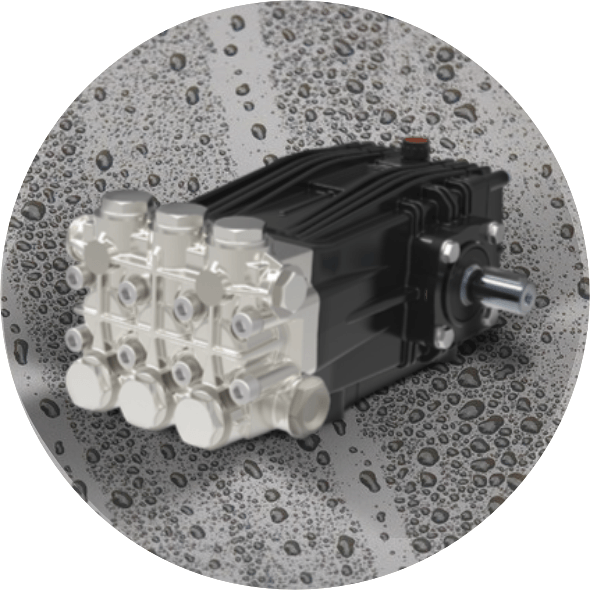

CWT Series 27 - 34lt 1450 rpm up to 200bar 85 Degrees C
CWTC Pumps are suitable for pumping hot water up to 85 degrees C and have a 24mm shaft for direct drive to 4 pole hollow shaft electric motors or to reduction gearboxes for engines.| Model | lt | gpm | bar | psi | hp | kw | rpm | inlets | outlets | kg |
|---|---|---|---|---|---|---|---|---|---|---|
| CWTC27-20S | 27 | 5.9 | 200 | 2900 | 13.8 | 10.3 | 1450 | 3/4 | 3/8 | 15.8 |
| CWTC34-20S | 34 | 7.5 | 200 | 2900 | 17.4 | 13.0 | 1450 | 3/4 | 3/8 | 15.8 |
CWT Series 44 - 50lt 1450 rpm up to 170bar 85 Degrees C
CWTC Pumps are suitable for pumping hot water up to 85 degrees C and have a 24mm shaft for direct drive to 4 pole hollow shaft electric motors or to reduction gearboxes for engines.| Model | lt | gpm | bar | psi | hp | kw | rpm | inlets | outlets | kg |
|---|---|---|---|---|---|---|---|---|---|---|
| CWTC42-17S | 44 | 9.7 | 170 | 2465 | 19.2 | 14.3 | 1450 | 1" | 1/2 | 15.9 |
| CWTC50-15S | 50 | 11.0 | 150 | 2175 | 19.2 | 14.3 | 1450 | 1" | 1/2 | 15.9 |
