Salt Water Pumps
Udor Pumps for Salt Water

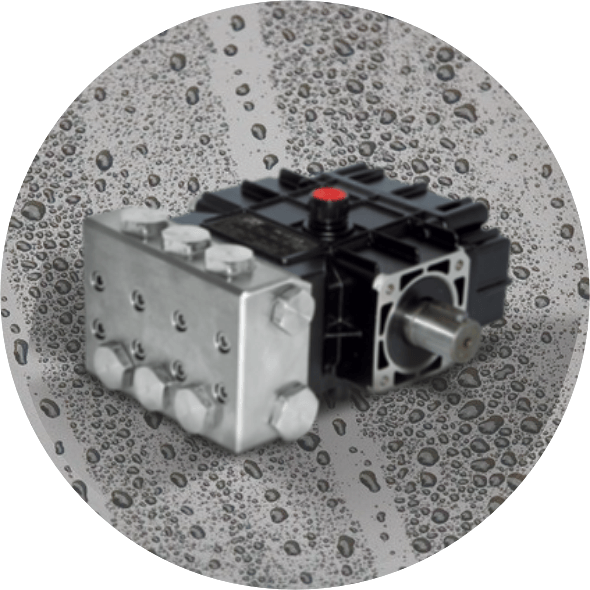

Udor Pumps PSC06-15S, PSC11-15S and PSC13-15S.
PSC Series   5.7 - 13lt   1450 rpm   up to 150 bar
PSC Pumps are suitable for pumping salt water and have a 24mm shaft for direct drive to 4 pole hollow shaft electric motors or to reduction gearboxes for engines.
Model lt gpm bar psi hp kw rpm inlets outlets kg
PSC06-15S 5.7 1.2 150 2175 2.2 1.6 1450 1/2 3/8 6.6
PSC11-15S 11 2.4 150 2175 4.2 3.1 1450 1/2 3/8 6.6
PSC13-15S 13 2.9 150 2175 5.0 3.7 1450 1/2 3/8 6.6
Udor Pumps MSC16-20S and MSC20-20S.
MSC Series   16 - 20lt   1450 rpm   up to 200 bar
MSC Pumps are suitable for pumping salt water and have a 24mm shaft for direct drive to 4 pole hollow shaft electric motors or to reduction gearboxes for engines.
Model lt gpm bar psi hp kw rpm inlets outlets kg
MSC16-20S 16 3.5 200 2900 8.2 6.1 1450 1/2 3/8 10.3
MSC20-20S 20 4.4 200 2900 10.3 7.7 1450 1/2 3/8 10.3

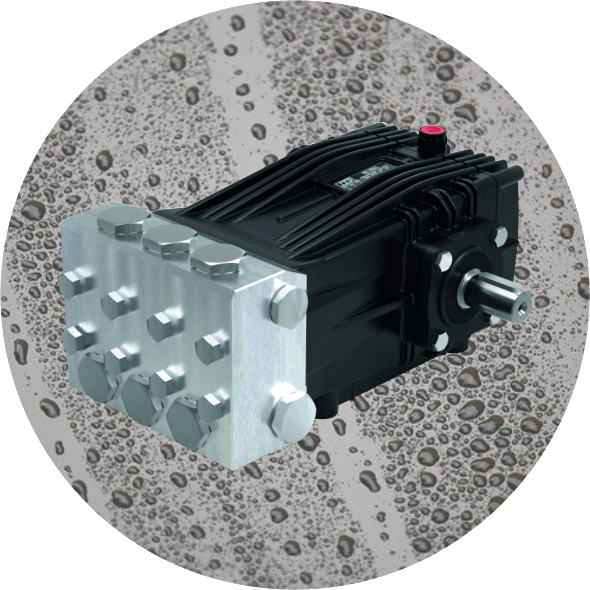

Udor Pumps CSC27-20S and CSC34-20S.
CSC Series   27 - 34lt   1450 rpm   up to 200 bar
CSC Pumps are suitable for pumping salt water and have a 24mm shaft for direct drive to 4 pole hollow shaft electric motors or to reduction gearboxes for engines.
Model lt gpm bar psi hp kw rpm inlets outlets kg
CSC27-20S 27 5.9 200 2900 13.8 10.3 1450 3/4 3/8 19.6
CSC34-20S 34 7.5 200 2900 17.4 13.0 1450 3/4 3/8 19.6
Udor Pumps CSC42-17S and CSC50-15S.
CSC Series   44 - 50lt   1450 rpm   up to 170 bar
CSC Pumps are suitable for pumping salt water and have a 24mm shaft for direct drive to 4 pole hollow shaft electric motors or to reduction gearboxes for engines.
Model lt gpm bar psi hp kw rpm inlets outlets kg
CSC42-17S 44 9.7 170 2465 19.2 14.3 1450 1" 3/8 19.7
CSC50-15S 50 11.0 150 2175 19.2 14.3 1450 1" 3/8 19.7

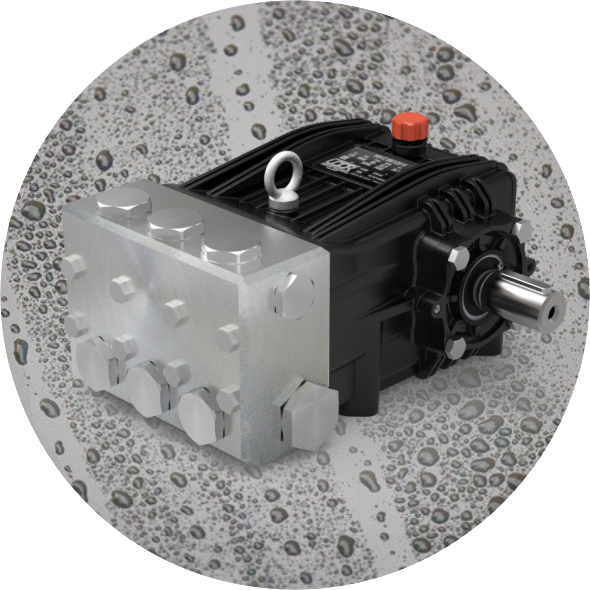

Udor Pumps NXS-C75-120R, NXS-C85-120R and NXS-C100-100R.
NXS Series   75 - 100lt   1450 rpm   up to 120 bar
NXS Pumps are suitable for pumping salt water and have a 35mm shaft for direct drive to 4 pole hollow shaft electric motors or to reduction gearboxes for engines.
Model lt gpm bar psi hp kw rpm inlets outlets kg
NXS-C75-120R 75 16.5 120 1740 23.1 17.0 1450 1" 1/4 3/4 36.1
NXS-C85-120R 87 19.2 120 1740 26.8 19.7 1450 1" 1/4 3/4 36.1
NXS-C100-100R 100 22.0 100 1450 25.6 18.9 1450 1" 1/4 3/4 36.1

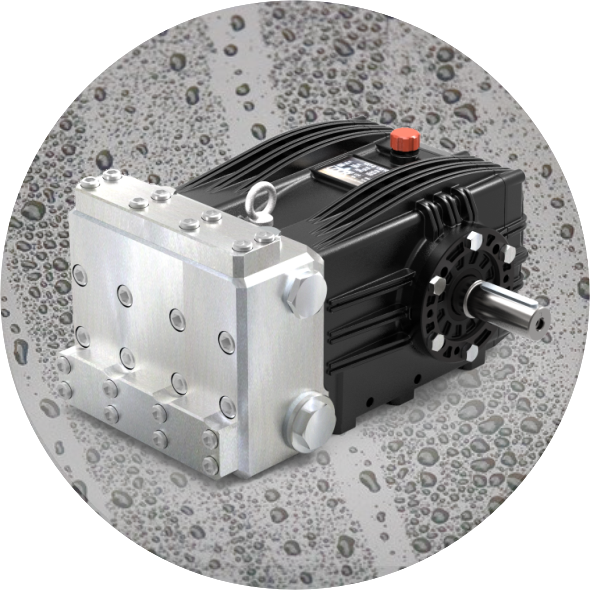

Udor Pumps VXS-B100-200R, VXS-B130-160R and VXS-B160-130R.
VXS Series   98 - 157lt   1000 rpm   up to 200 bar
VXS Pumps are suitable for pumping salt water and have a 35mm shaft for belt drive to electric motors.
Model lt gpm bar psi hp kw rpm inlets outlets kg
VXS-B100-200R 98 21.6 200 2900 50.3 37.5 1000 1" 1/2 1" 68
VXS-B130-160R 125 27.5 160 2320 51.3 38.3 1000 1" 1/2 1" 68
VXS-B160-130R 157 34.6 130 1885 52.3 39.0 1000 1" 1/2 1" 68
