128 - 379lt Udor Pumps 105hp
Udor Pumps HX-A135-300R, HX-A160-240R, HX-A200-200R, HX-A250-160R, HX-A310-130R and HX-A400-100R.
HX-A Series   128 - 379lt   800 rpm   up to 300 bar
HX  Pumps have a 80mm shaft and can be driven by hydraulic motors, vehicle PTO shafts or electric motors or engines via drive belts.
Model lt gpm bar psi hp kw rpm inlets outlets kg
HX-A 135-300R 128 28.2 300 4350 99 74 800 2"1/2 1"1/4 167
HX-A 160-240R 162 35.7 240 3480 100 75 800 2"1/2 1"1/4 167
HX-A 200-200R 201 44.3 200 2900 103 77 800 2"1/2 1"1/4 167
HX-A 250-160R 254 56.0 160 2320 105 78 800 2"1/2 1"1/4 167
HX-A 310-130R 313 69.0 130 1885 105 78 800 2"1/2 1"1/4 167
HX-A 400-100R 379 83.5 100 1450 98 76 800 2"1/2 1"1/4 167

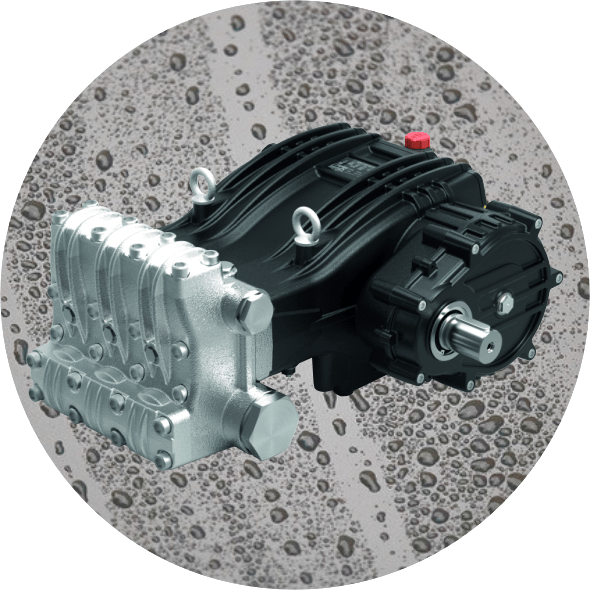

Udor Pumps HXR-C135-300R, HXR-C160-240R, HXR-C200-200R, HXR-C250-160R, HXR-C310-130R and HXR-C400-100R.
HXR-C Series   128 - 379lt   1500 rpm Gearbox   up to 300 bar
HXRC  Pumps have a gearbox with a 50mm shaft and can be driven by  electric motors or engines via drive belts and hydraulic motors.
Model lt gpm bar psi hp kw rpm inlets outlets kg
HXR-C 135-300R 128 28.2 300 4350 99 74 1500 2"1/2 1"1/4 187
HXR-C 160-240R 162 35.7 240 3480 100 75 1500 2"1/2 1"1/4 187
HXR-C 200-200R 201 44.3 200 2900 103 77 1500 2"1/2 1"1/4 187
HXR-C 250-160R 254 56.0 160 2320 105 78 1500 2"1/2 1"1/4 187
HXR-C 310-130R 313 69.0 130 1885 105 78 1500 2"1/2 1"1/4 187
HXR-C 400-100R 379 83.5 100 1450 98 76 1500 2"1/2 1"1/4 187
Udor Pumps HXR-D135-300R, HXR-D160-240R, HXR-D200-200R, HXR-D250-160R, HXR-D310-130R and HXR-D400-100R.
HXR-D Series   128 - 379lt   1800 rpm Gearbox   up to 300 bar
HXRD  Pumps have a gearbox with a 50mm shaft and can be driven by engines via drive belts and hydraulic motors.
Model lt gpm bar psi hp kw rpm inlets outlets kg
HXR-D 135-300R 128 28.2 300 4350 99 74 1800 2"1/2 1"1/4 187
HXR-D 160-240R 162 35.7 240 3480 100 75 1800 2"1/2 1"1/4 187
HXR-D 200-200R 201 44.3 200 2900 103 77 1800 2"1/2 1"1/4 187
HXR-D 250-160R 254 56.0 160 2320 105 78 1800 2"1/2 1"1/4 187
HXR-D 310-130R 313 69.0 130 1885 105 78 1800 2"1/2 1"1/4 187
HXR-D 400-100R 379 83.5 100 1450 98 76 1800 2"1/2 1"1/4 187
Udor Pumps HXR-M135-300R, HXR-M160-240R, HXR-M200-200R, HXR-M250-160R, HXR-M310-130R and HXR-M400-100R.
HXR-M Series   128 - 379lt   2200 rpm Gearbox   up to 300 bar
HXRM Pumps have a gearbox with a 50mm shaft and can be driven by engines via drive belts and hydraulic motors.
Model lt gpm bar psi hp kw rpm inlets outlets kg
HXR-M 135-300R 128 28.2 300 4350 99 74 2200 2"1/2 1"1/4 187
HXR-M 160-240R 162 35.7 240 3480 100 75 2200 2"1/2 1"1/4 187
HXR-M 200-200R 201 44.3 200 2900 103 77 2200 2"1/2 1"1/4 187
HXR-M 250-160R 254 56.0 160 2320 105 78 2200 2"1/2 1"1/4 187
HXR-M 310-130R 313 69.0 130 1885 105 78 2200 2"1/2 1"1/4 187
HXR-M 400-100R 379 83.5 100 1450 98 76 2200 2"1/2 1"1/4 187
