23 - 70lt Pumps with 24mm Shaft

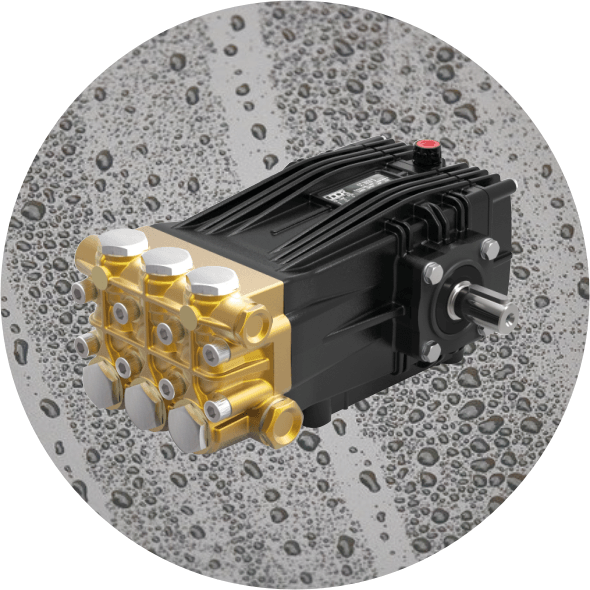

Udor Pumps CB26-20S, CB30-20S, CB34-20S and CB50-15S.

CB Series   26 - 34lt   1000 rpm   up to 200 bar

CB 26 to 34 Pumps have a 24mm shaft and can be driven from tractor PTO shafts.

Model lt gpm bar psi hp kw rpm inlets outlets kg
CB26-20S 26 5.7 200 2900 13.3 9.9 1000 3/4 1/2" 16.1
CB30-20S 30 6.6 200 2900 15.4 11.5 1000 3/4 1/2" 16.1
CB34-20S 34 7.5 200 2900 17.4 13 1000 3/4 1/2" 16.1

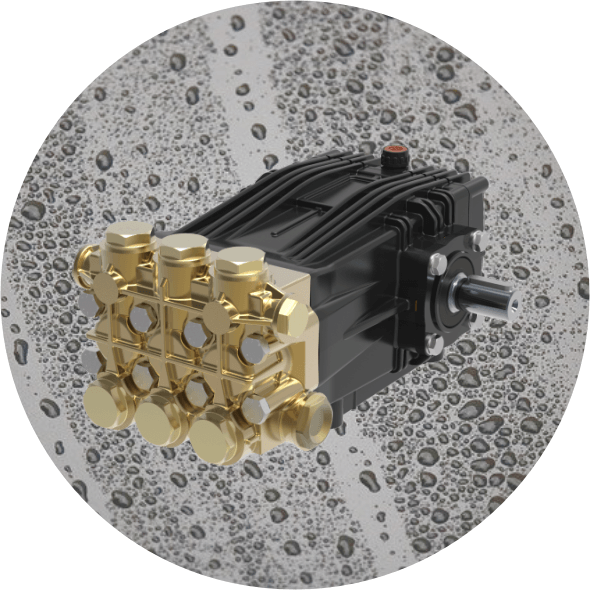

Udor Pumps CC23-20S, CC26-20S, CC30-20S and CC34-17S.

CC Series   23 - 34lt   1450 rpm   up to 200 bar

CC 23 to 34 Pumps have a 24mm shaft and can be driven by electric motors or fitted to reduction gearboxes for engines.

Model lt gpm bar psi hp kw rpm inlets outlets kg
CC23-20S 23 5.1 200 2900 11.8 8.8 1450 3/4 3/8 15.8
CC26-20S 26 5.7 200 2900 13.3 9.9 1450 3/4 3/8 15.8
CC30-20S 30 6.6 200 2900 15.4 11.5 1450 3/4 3/8 15.8
CC34-17S 34 7.5 170 2465 17.4 11 1450 3/4 3/8 15.8

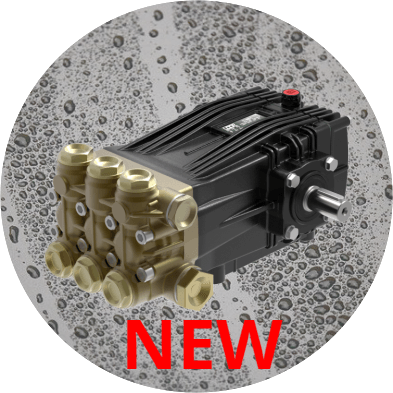

Udor Pumps CC38-17S, CC42-17S, CC50-15S and CC70-15S.

CC Series   38 - 50lt   1450 rpm   up to 170 bar

CC 38 to 70 Pumps have a 24mm shaft and can be driven by electric motors or fitted to reduction gearboxes for engines.

Model lt gpm bar psi hp kw rpm inlets outlets kg
CC38-17S 38 8.4 170 2465 16.6 9.9 1450 1" 1/2" 16.1
CC42-17S 44 9.7 170 2465 19.2 14.3 1450 1" 1/2" 16.2
CC50-15S 50 11 150 2175 19.2 14.3 1450 1" 1/2" 16.2
Udor Pumps CC38-17S, CC42-17S, CC50-15S and CC70-15S.

CB & CC Series   50 - 70lt   1000 - 1450 rpm  up to 150 bar

CB 50 & CC70 Pumps have a 24mm shaft and can be driven by electric motors or fitted to reduction gearboxes for engines.

Model lt gpm bar psi hp kw rpm inlets outlets kg
CB50-15S 50 11.01 150 2175 19.1 14.0 1000 1" 3/4" 17.5
CC70-15S 70 15.42 150 2175 27.7 20.4 1450 1" 3/4" 17.5
Udor Pumps CKC26-30S, CKC30-30S and CKC34-25S.

CKC Series   26 - 34lt   1450 rpm   up to 300 bar

CKC 26 to 34 Pumps have a 24mm shaft and can be driven by electric motors or fitted to reduction gearboxes for engines.

Model lt gpm bar psi hp kw rpm inlets outlets kg
CKC26-30S 26 5.7 300 4350 20 14.9 1450 3/4 3/8 17.4
CKC30-30S 30 6.6 300 4350 23.1 17.2 1450 3/4 3/8 17.4
CKC34-25S 34 7.5 250 3625 21.8 16.3 1450 3/4 3/8 17.4
Udor Pumps CKC38-20S, CKC42-20S and CKC50-20S.

CKC Series   38 - 50lt   1450 rpm   up to 200 bar

CKC 38 to 50 Pumps have a 24mm shaft and can be driven by electric motors or fitted to reduction gearboxes for engines.

Model lt gpm bar psi hp kw rpm inlets outlets kg
CKC38-20S 38 8.4 200 2900 19.5 14.5 1450 1" 1/2 17.4
CKC42-20S 44 9.7 200 2900 22.6 16.9 1450 1" 1/2 17.5
CKC50-20S 50 11 200 2900 25.6 19.1 1450 1" 1/2 17.5
