500 - 1250 bar Udor Pumps

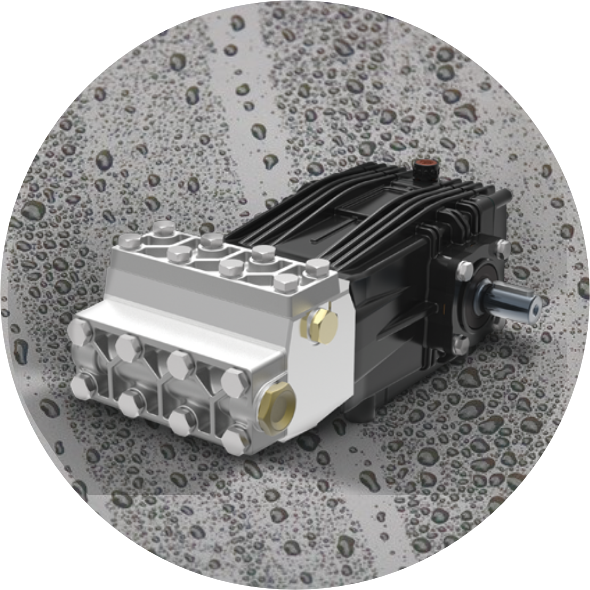

Udor Pumps CHC12-50S, CHC16-50S, CHC20-50S, CHD3.0-75S and CHD4.5-75S.
CH Series   11.5 - 20lt   1450 to 1750 rpm   up to 500 bar
CH Pumps have a 24mm shaft and can be driven by electric motors or engines via a reduction gearbox.
Model lt gpm bar psi hp kw rpm inlets outlets kg
CHC12-50S 12 2.6 500 7250 15.4 11.5 1450 3/4 3/8 22
CHC16-50S 16 3.5 500 7250 20.5 15.3 1450 3/4 3/8 22
CHC20-50S 20 4.4 500 7250 25.6 19.1 1450 3/4 3/8 22
CHD3.0-75S 11.5 2.5 500 7250 14.7 11.0 1750 3/4 3/8 22
CHD4.5-75S 16 3.5 500 7250 20.5 15.3 1750 3/4 3/8 22

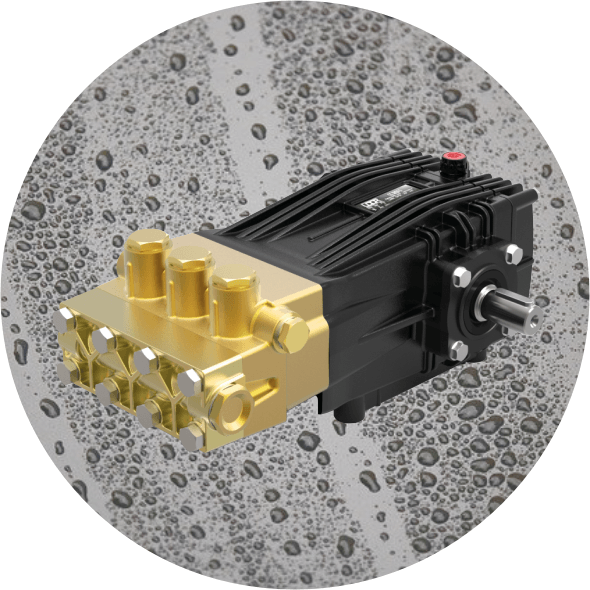

Udor Pumps CXC15-50S, CXC18-50S and CXC22-50S.
CXC Series   15 - 22lt   1450 rpm   up to 500 bar
CXC Pumps have a 24mm shaft and can be driven by electric motors or engines via a reduction gearbox.
Model lt gpm bar psi hp kw rpm inlets outlets kg
CXC15-50S 15 3.3 500 7250 19.2 14.3 1450 3/4 3/8 24
CXC18-50S 18 4.0 500 7250 23.1 17.2 1450 3/4 3/8 24
CXC22-50S 22 4.8 500 7250 28.2 21.0 1450 3/4 3/8 24
Udor Pumps Penta-B21-500R, Penta-C30-500R and Penta-D28-500R.
Penta Series   21 - 28lt   1000 to 1750 rpm   up to 500 bar
Penta 21 to 28 Pumps have a 35mm shaft and can be driven by electric motors or engines via belts.
Model lt gpm bar psi hp kw rpm inlets outlets kg
PENTA-B21-500R 21 4.6 500 7250 26.9 20.1 1000 1" 3/8 45
PENTA-C30-500R 30 6.6 500 7250 38.5 28.7 1450 1" 3/8 45
PENTA-D28-500R 28 6.2 500 7250 35.9 26.8 1750 1" 3/8 45

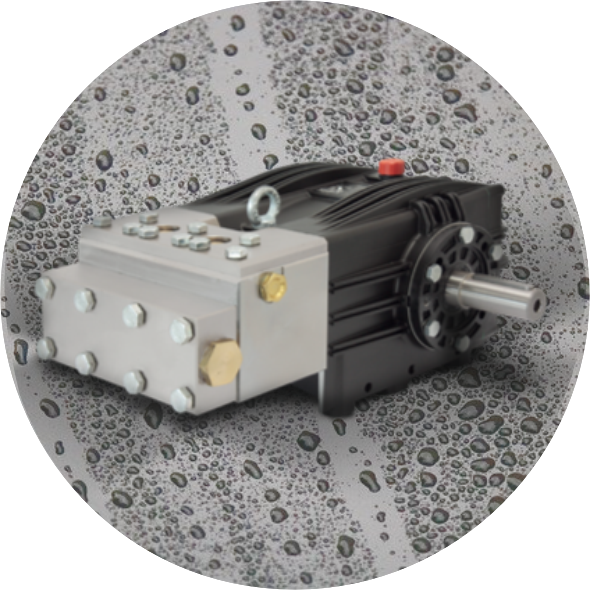

Udor Pumps VH -B40-500R 500 bar.
VH Series   40lt   1000 rpm   up to 500 bar
VH Pumps have a 35mm shaft and can be driven by electric motors or engines via belts.
Model lt gpm bar psi hp kw rpm inlets outlets kg
VH-B40-500R 40 8.8 500 7250 51.2 38.2 1000 1" 1/2 66
Udor Pumps VY-B15-1000R, VYB14-1250R, B20-800R, VY-B20-1000Rand VY-B25-800R. Udor Pumps VY-F15-1000R, VY-F15-1250R, VY-F20-800R and VY-F20-1000R. Udor Pumps VY-C15-1000R and VY-C19-1000R. Udor Pumps VY-D15-1000R, VY-D18-1000R and VY-D24-800R.
VY Series   14lt - 25lt   1000 to 1750 rpm   up to 1250 bar
VY Pumps have a 35mm shaft and can be driven by electric motors or engines via belts.
Model lt gpm bar psi hp kw rpm inlets outlets kg
VY-B15-1000R 14.6 3.2 1000 14500 37.4 27.9 1000 1/2 1/2 62
VY-B14-1250R 14.1 3.1 1250 18130 45.2 33.7 1000 1/2 1/2 62
VY-B20-800R 20.0 4.4 800 11600 41.0 30.6 1000 1/2 1/2 60
VY-B20-1000R 19.5 4.3 1000 14500 50.0 37.3 1000 1/2 1/2 62
VY-B25-800R 24.5 5.4 800 11600 50.3 37.5 1000 1/2 1/2 60
1200 RPM
VY-F15-1000R 15.0 3.3 1000 14500 38.4 28.7 1200 1/2 1/2 62
VY-F15-1250R 14.5 3.2 1250 18130 46.4 34.6 1200 1/2 1/2 62
VY-F20-800R 20.0 4.4 800 11600 41.0 30.6 1200 1/2 1/2 60
VY-F20-1000R 19.5 4.3 1000 14500 50.0 37.3 1200 1/2 1/2 60
1450 RPM
VY-C15-1000R 15.0 3.3 1000 14500 47.7 35.6 1450 1/2 1/2 62
VY-C19-1000R 18.6 4.1 1000 14500 39.8 29.7 1450 1/2 1/2 62
1750 RPM
VY-D15-1000R 15.5 3.4 1000 14500 39.8 29.7 1750 1/2 1/2 62
VY-D18-1000R 18.1 3.9 1000 14500 46.4 34.6 1750 1/2 1/2 62
VY-D24-800R 24.0 5.3 800 11600 49.2 36.7 1750 1/2 1/2 62
