Gearboxes for Engines

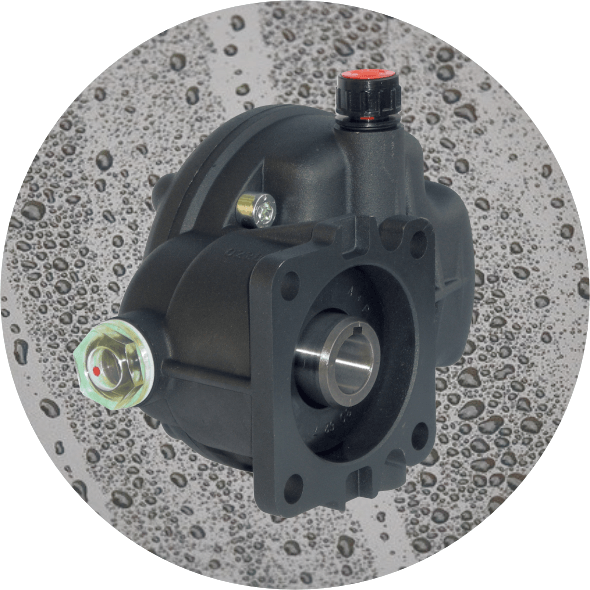

Reduction Gearbox for Engines up to 7hp
For PN and PK pumps with 24mm shaft, these gearboxes are for connection to petrol or diesel engines with 3/4" parallel shafts.
Reduction Gearbox for Engines up to 31hp
For BC to CH pumps with 24mm shaft, these gearboxes are for connection to petrol or diesel engines with parallel shafts.
| Model | Pump Shaft | Engine Shaft | Pump rpm | Engine rpm | hp | kW | Pump Series | Weight |
|---|---|---|---|---|---|---|---|---|
| RC122K 1" | 24mm | 1" | 1450 | 3000 | 22 | 16.4 | B,BK,MS,MWT,C,CWT,CK,CH | 4.5 |
| RC122K 1"1/8 | 24mm | 1"1/8 | 1450 | 3000 | 22 | 16.4 | B,BK,MS,MWT,C,CWT,CK,CH | 4.5 |
| RC122X 1"1/8 | 24mm | 1"1/8 | 1450 | 3000 | 31 | 23.0 | B,BK,MS,MWT,C,CWT,CK,CH | 4.5 |

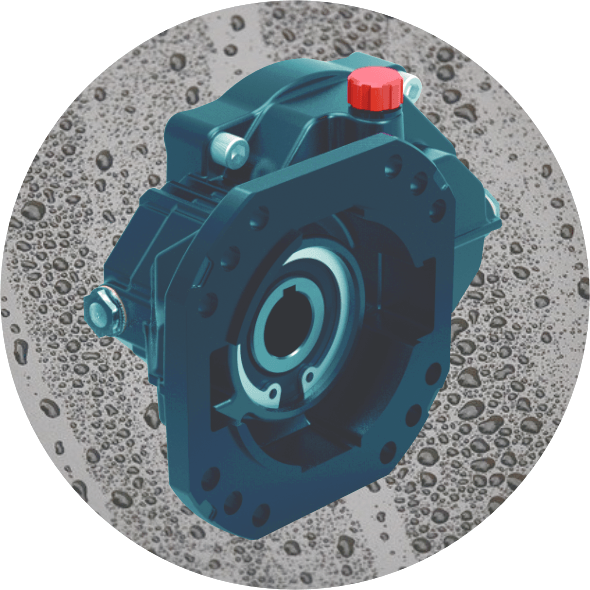

RN122 Reduction Gearbox for Engines up to 40hp
For NX and NK pumps with 35mm shaft, these gearboxes are for connection to petrol or diesel engines with parallel shafts.
| Model | Pump Shaft | Engine Shaft | Pump rpm | Engine rpm | hp | kW | Pump Series | Engines | |
|---|---|---|---|---|---|---|---|---|---|
| RN122 1"1/8 | 35mm | 1"1/8 | 1450 | 3000 | 40 | 30 | NX | B & S, Honda | |
| RN122 1"1/8 KH | 35mm | 1"1/8 | 1450 | 3000 | 40 | 30 | NX | Kohler | |
| RN122 1"7/16 | 35mm | 1"7/16 | 1450 | 3000 | 40 | 30 | NX | B & S, Honda | |
| RN122 1"7/16 KH | 35mm | 1"7/16 | 1450 | 3000 | 40 | 30 | NX | Kohler |

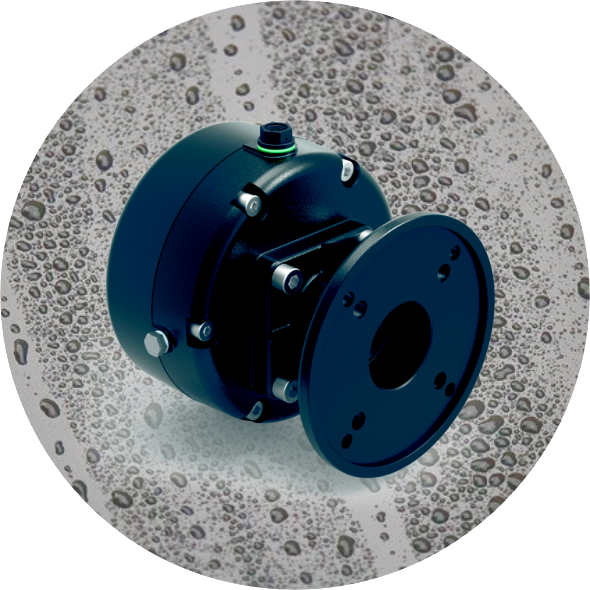

M164 - G62 Reduction Gearbox for Engines up to 16hp
For Gamma 62 pumps with 35mm shaft, these gearboxes are for connection to petrol or diesel engines with parallel shafts.
| 5 | Pump Shaft | Engine Shaft | Pump rpm | Engine rpm | hp | kW | Oil | |
|---|---|---|---|---|---|---|---|---|
| M164 - G62 | 35mm | 1" | 550 | 3400 | 16 | 12 | 0.51lt |
