Pumps for B14 Face Motors

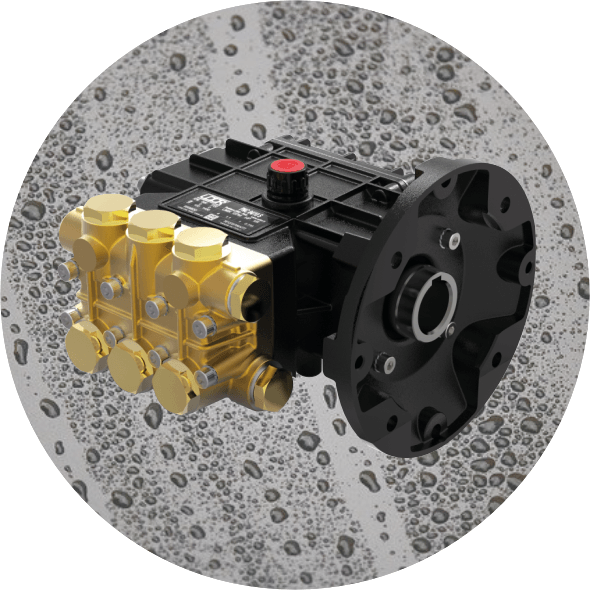

Udor Pumps PNC12-14I.

PNCI Series for B14 Face Motors

PNCI Pumps have a 28mm hollow shaft for direct drive to electric motors up to 4.5hp with 28mm parallel shafts, they have 3/8f inlets & 3/8f outlets with a weight of 5.8kg.

Model lt bar hp kw rpm
PNC8/17I 8 170 3.5 2.6 1450
PNC12/14I 12 140 4.3 3.2 1450
Udor Pumps BC13-20I, BC15-20I and BC18-20I.

BCI Series for B14 Face Motors

BCI Pumps have a 28mm hollow shaft for direct drive to electric motors up to 10hp with 28mm parallel shafts, they have 1/2f inlets & 3/8f outlets with a weight of 9.8kg.

Model lt bar hp kw rpm
BC13-20I 13 200 6.7 5.0 1450
BC15-20I 15 200 7.7 5.7 1450
BC18-20I 18 200 9.5 7.1 1450
