Gearboxes for Vehicle PTOs

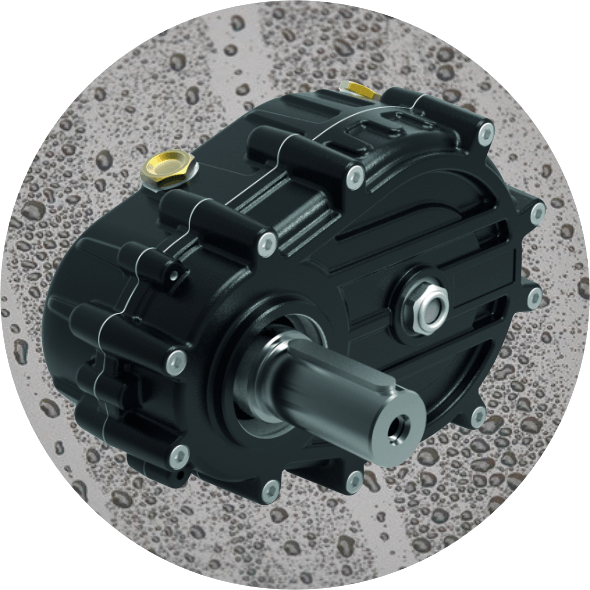

Udor PTO Gearbox RX115, RX118 and RX122 for Udor pumps Penta, VH, VXC, VXB, VYB and VYC.

Reduction Gearbox for Vehicle PTOs up to 60hp

For pumps with 35mm shaft, these gearboxes are for connection to vehicle PTO shafts via flexible drive coupling.

Model Pump Shaft Input Shaft Pump rpm Input rpm hp kW Pump Series
RX115 35mm 40mm 1450 2200 60 45 Penta-C, VXC, VYC
RX118 35mm 40mm 1000 1800 60 45 Penta-B, VH, VXB, VYB
RX122 35mm 40mm 1000 2200 60 45 Penta-B, VH, VXB, VYB
Udor PTO Gearbox RXX115 for Udor pumps VXX-B.

Reduction Gearbox for Vehicle PTOs up to 75hp

For VXX pumps with 40mm shaft, these gearboxes are for connection to vehicle PTO shafts via flexible drive coupling.

Model Pump Shaft Input Shaft Pump rpm Input rpm hp kW Pump Series
RXX115 40mm 40mm 1000 2200 75 56 VXX-B
