Pumps for Hydraulic Motors up to 27hp

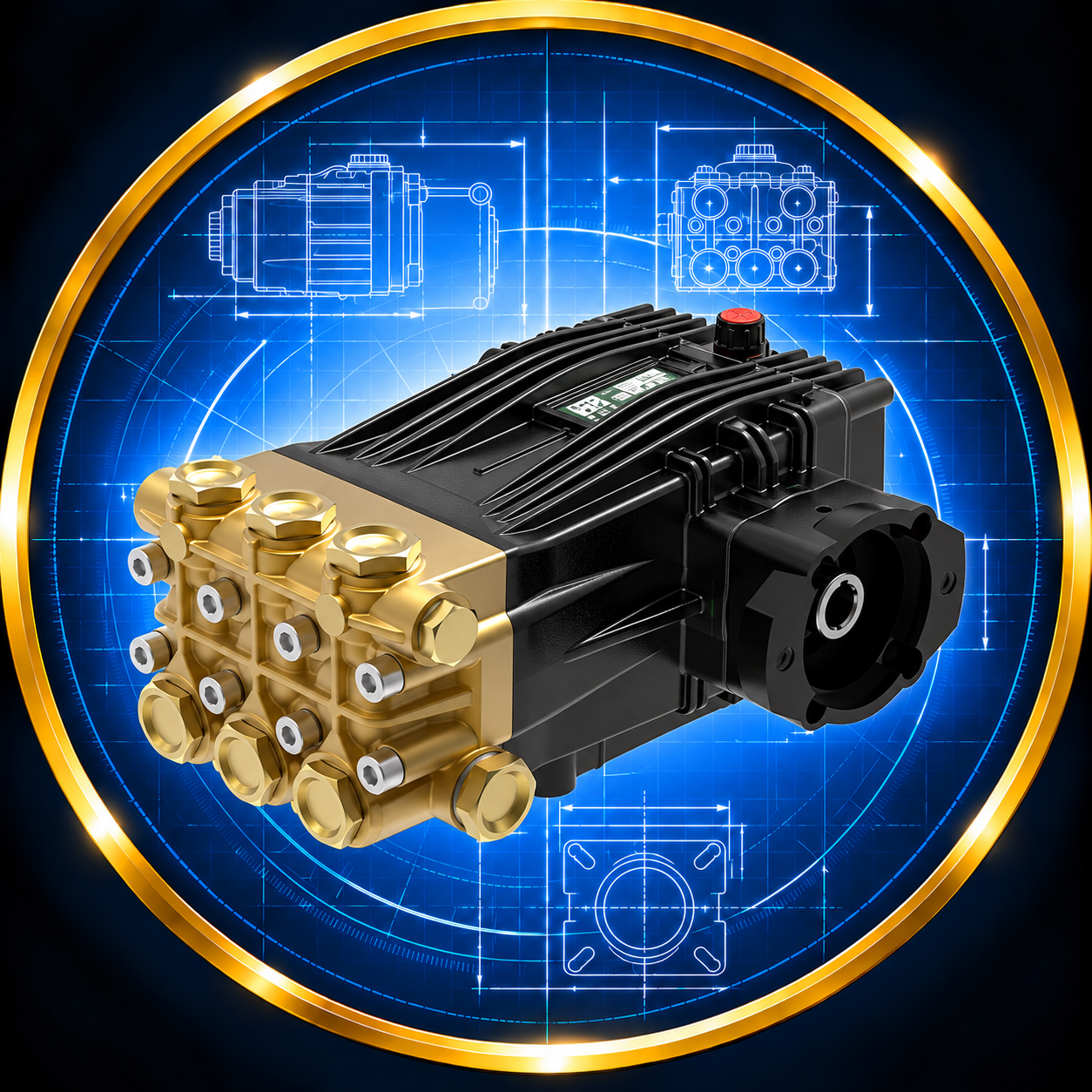

CC30/20T MI Pumps 3/4" Hollow Shaft
CC30/20T MI pumps have a 3/4" hollow shaft for direct drive to hydraulic motors up to 16hp with 3/4 parallel shafts, they have 3/4f inlets & 3/8f outlets with a weight of 15.9kg.
| Model | lt | bar | hp | kw | rpm |
|---|---|---|---|---|---|
| CC30/20T MI | 30 | 200 | 15.4 | 11.5 | 1450 |

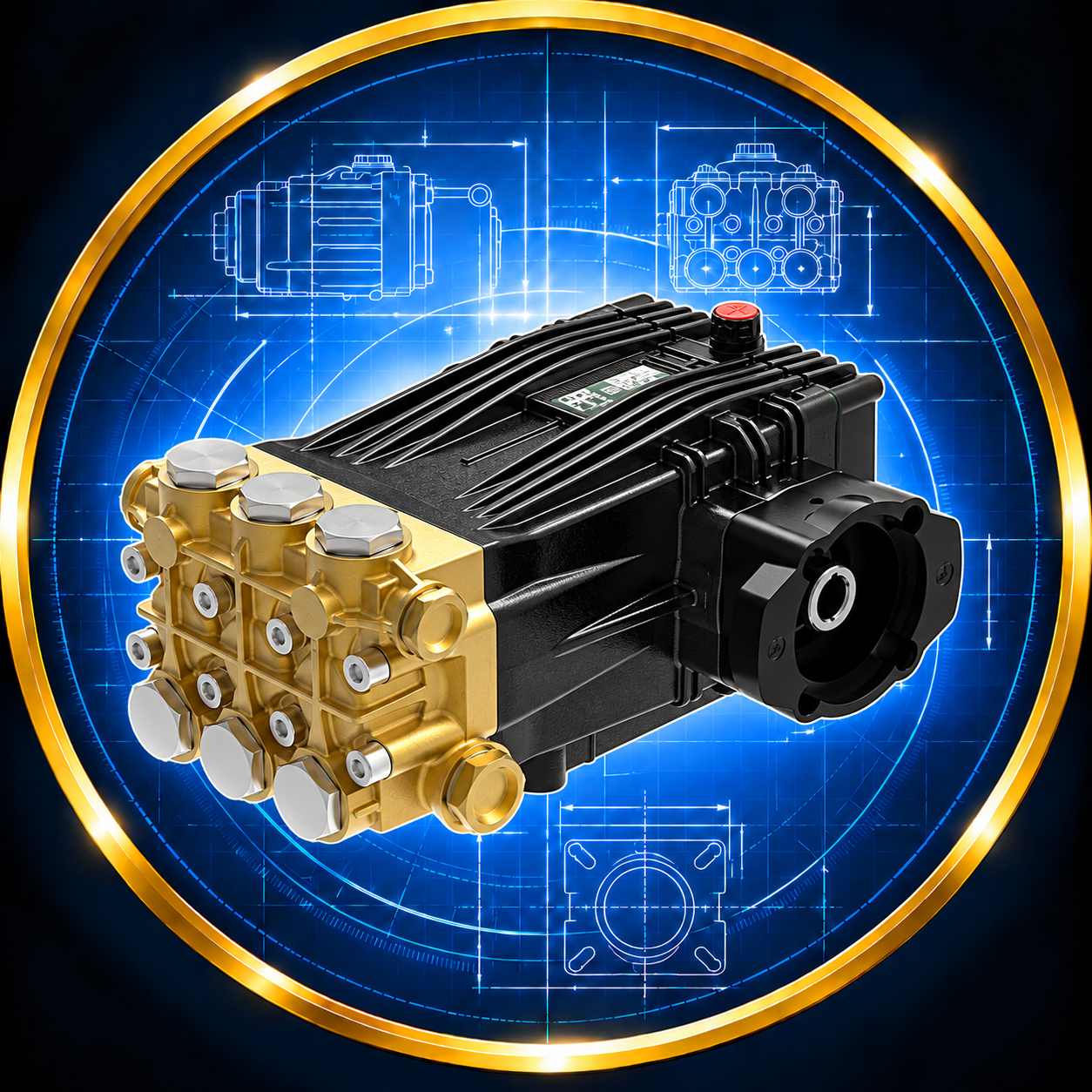

CC38/17T MI Pumps 3/4" Hollow Shaft
CC38/17T MI pumps have a 3/4" hollow shaft for direct drive to hydraulic motors up to 17hp with 3/4 parallel shafts, they have 3/4f inlets & 1/2f outlets with a weight of 15.9kg.
| Model | lt | bar | hp | kw | rpm |
|---|---|---|---|---|---|
| CC38/17T MI | 38 | 170 | 16.6 | 12.4 | 1450 |

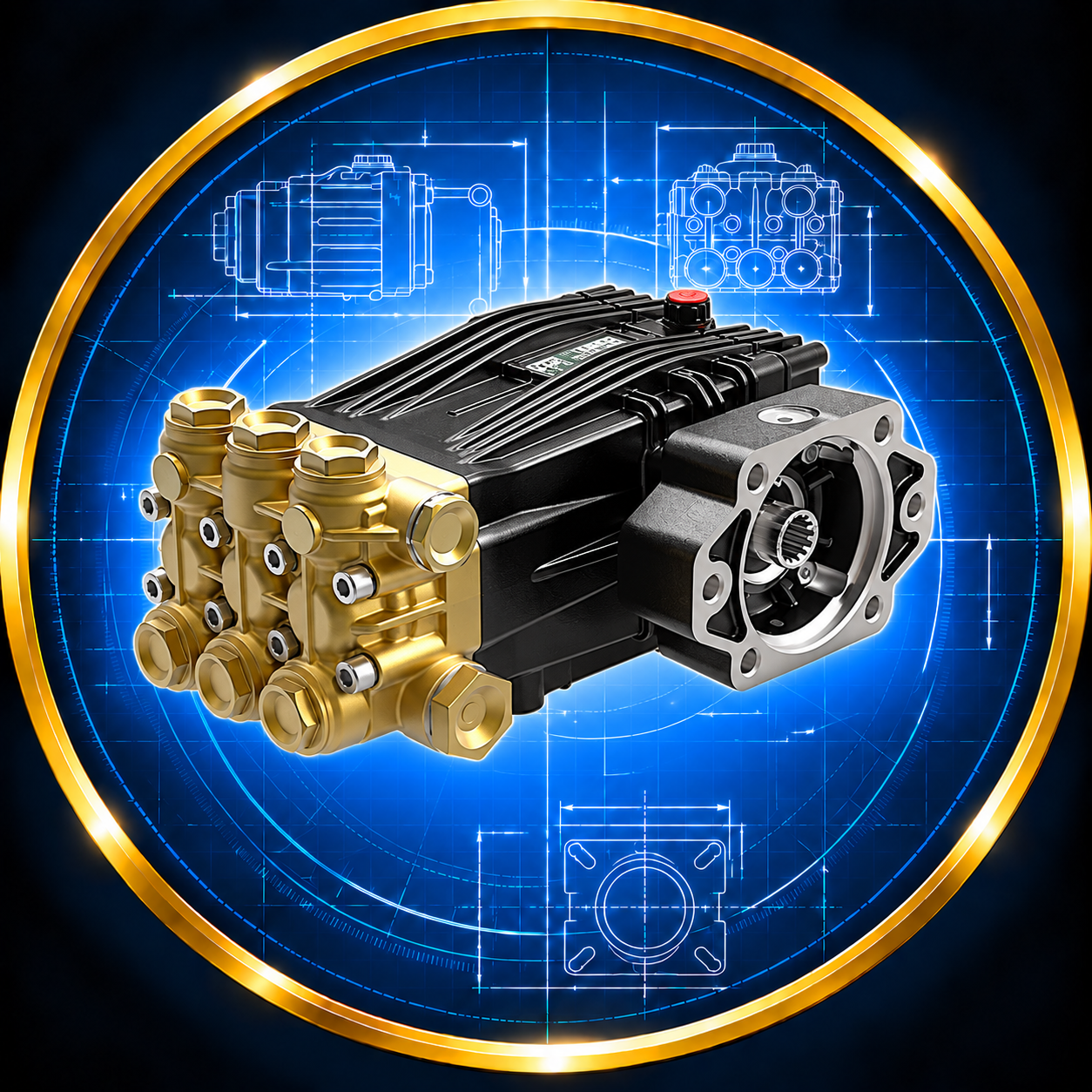

CC70/15H MI Pumps SAE B Hollow Shaft
CC70/15H MI pumps have a 13T hollow shaft for direct drive to hydraulic motors up to 27hp with SAE B 13T shaft, they have 1"f inlets & 3/4f outlets with a weight of 18.5kg.
| Model | lt | bar | hp | kw | rpm |
|---|---|---|---|---|---|
| CC70/15H MI | 70 | 150 | 26.9 | 20.1 | 1450 |

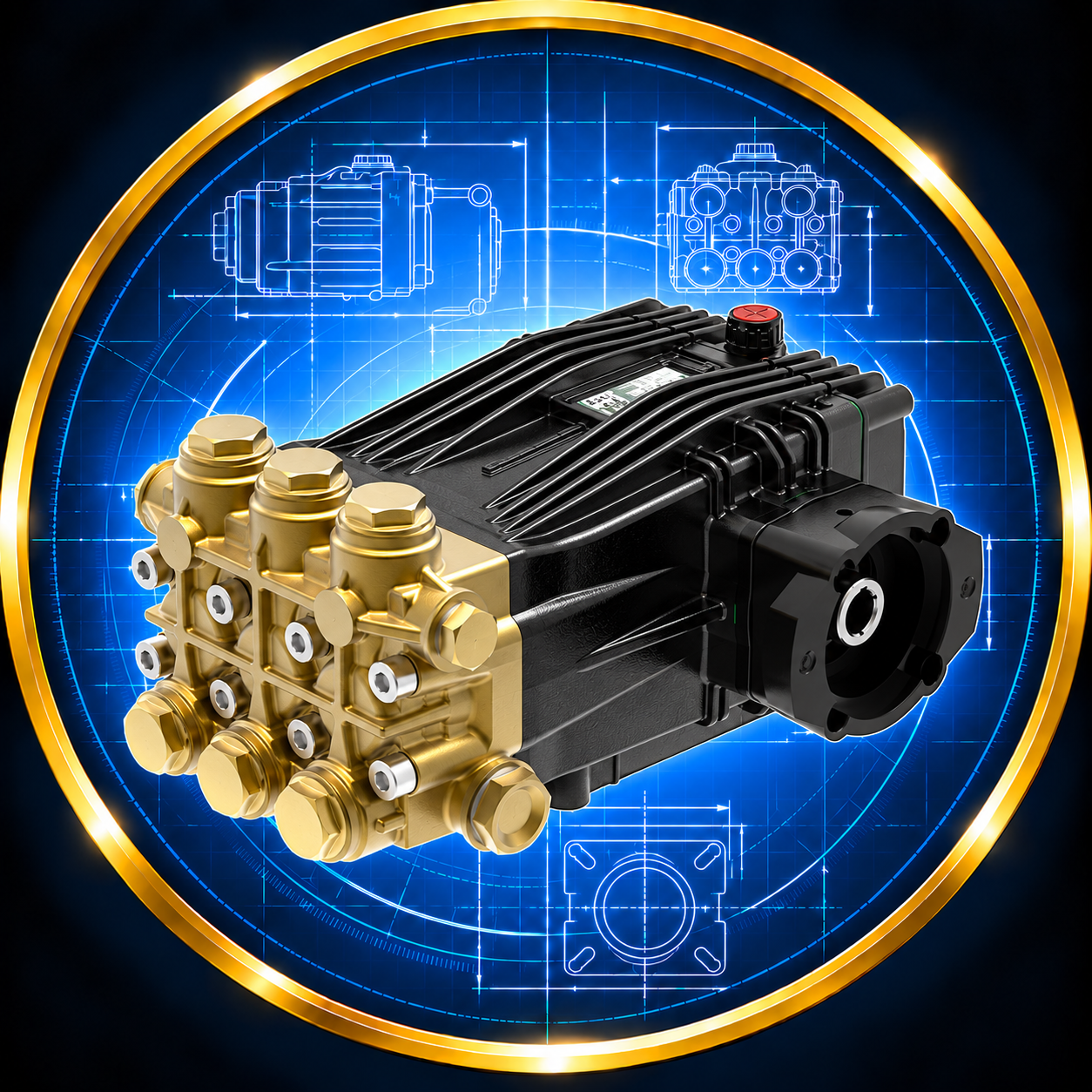

CKD MI Pumps 3/4" Hollow Shaft
CKD MI pumps have a 3/4" hollow shaft for direct drive to hydraulic motors up to 23hp with 3/4 parallel shafts, they have 3/4f inlets & 3/8f outlets with a weight of 19.1kg.
| Model | lt | bar | hp | kw | rpm |
|---|---|---|---|---|---|
| CKD7.5/44T MI | 28 | 300 | 21.8 | 16.3 | 1750 |
| CKD9.5/36T MI | 36 | 250 | 23.0 | 17.2 | 1750 |
| CKD6.0/51T MI | 23 | 350 | 20.4 | 15.2 | 1750 |
